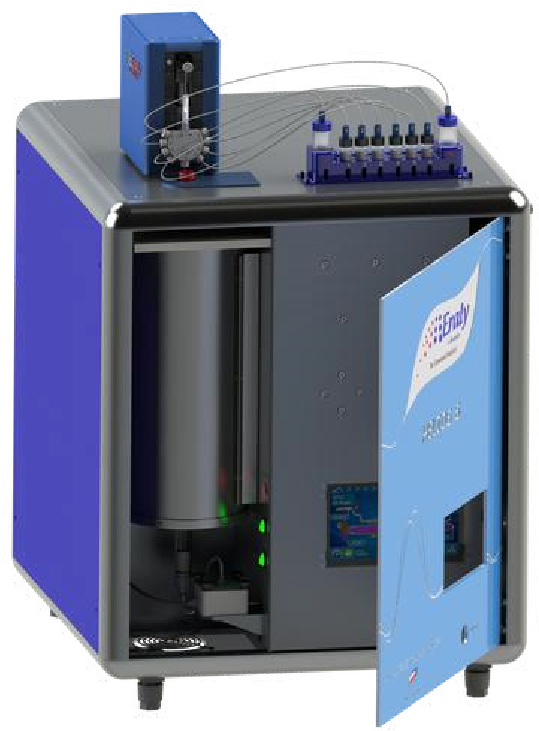

HELIOS S is the most sensitive and accurate analyzer for sulfur measurement dedicated to Refineries, Quality Control as well as contract laboratories.
By Ultraviolet Fluorescence principle, it detects rapidly Sulfur in liquid, oil, biofuel, lubricating oil, hydrocarbon, solvent, water, gas, LPG and solid samples.
Developed in collaboration between ERALY and end users (laboratory technicians and researchers) this equipment offers unrivaled advantages in ergonomic, reliability and robustness.
ASTM D5453 / ASTM D6667 ASTM D7183 / ASTM D7551
UOP 987 / IP490 / SH/T 0689 ISO 20 846
Detection Limit / Quantification Limit | 5 ppb to 10% / 10 ppb to 10% | ||
Accuracy RSD % | At 0.1 ppm 0.48 % | At 1 ppm 0.32 % | At 100 ppm 0.84 %. |
Injections | 20 to 80 µl liquids | 10 ml gas | 20 µL LPG |
Supply gas | Oxygen 99.998% - 3 bar And Argon 99.995 % - 3 bar. | ||
Electric | 110 V / 230 V / 60Hz – 50 Hz / 800W | ||
Furnace | Temperature Furnace F2 up to 1100°C | ||
Dimensions (W x H x D) | 51 cm x 78 cm x 56 cm / weight 32 kg | ||
