LT/VB-44000/M

Bench top laboratory liquid bath for low temperatures

• Bench top instrument with metallic case structure painted with anti-acid products and double chamber insulation
• Stainless steel bath with liquid capacity about 18 litres
• Over-temperature light and heating cut-off manually settable
• Double stage motor compressors system CFC free able to cool down the bath to -40°C
• Bath cover with 5 test positions – 51 mm diameter
• Cooling fan for electronic parts, stirrer motor grant homogeneity/uniformity
• Managed by a Touch Screen Panel PC by means of the Lab-Link software running in Windows® ambient:
  • TFT/LCD 8” high resolution
  • 2 × Usb ports for peripherical connection
  • Switchable temperature from °C to °F
• Power consumption: 2100 Watt
• Power supply: 220 Vac 50/60 Hz

LT/VB-45000/M

Bench top laboratory liquid bath for low temperatures

• Bench top instrument with metallic case structure painted with anti-acid products and double chamber insulation
• Stainless steel bath with liquid capacity about 18 litres
• Over-temperature light and heating cut-off manually settable
• Double stage motor compressors system CFC free able to cool down the bath to -70°C
• Bath cover with 5 test positions – 51 mm diameter
• Cooling fan for electronic parts, stirrer motor grant homogeneity/uniformity
• Managed by a Touch Screen Panel PC by means of the Lab-Link software running in Windows® ambient:
  • TFT/LCD 8” high resolution
  • 2 × USB ports for peripherical connection
  • Switchable temperature from °C to °F
• Power consumption: 2300 Watt
• Power supply: 220 Vac 50/60 Hz

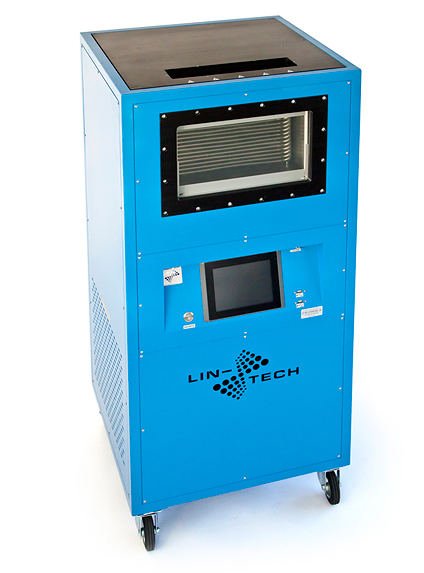

LT/VB-47000/M-SA

Digital viscometer bath for low temperatures - ASTM D2983 - Stand Alone

• Liquid bath with heating / cooling coil
• Bath cover with 6 on-line holes
• Light and resistant structure fitted with front squared window and light
• Cooling is controlled by a motor compressor with ecological gas CFC free
• Support for Brookfield head
• Heating is provided by an electric immersion stainless steel heater
• Integrated touch screen panel pc for control bath:
  • TFT/LCD 8”
  • Resolution 1024 × 768 and 256 k colours
  • 2 × USB Port
• PID with over temperature alarm and PT100A probe
• LabLink software running in Windows® ambient
• Motor stirrer
• Power supply: 220 Vac 50/60 Hz
• Cord cable 220 Vac
• User manual
• Temperatures: in °C / °F
• Cooling capacity: from ambient temperature up to -75 °C

LT/VB-47445/M-SA

Digital viscometer bath for low temperatures - ASTM D445, D2532, D2983
Stand Alone

• Liquid bath with heating / cooling coil
• Bath cover with 5 on-line holes for capillary accomodation and reduction rings for test cell ASTM D2532 / D2932
• Light and resistant structure fitted with front squared window and light
• Cooling is controlled by a motor compressor with ecological gas CFC free
• Support for Brookfield head
• Heating is provided by an electric immersion stainless steel heater
• Integrated touch screen panel pc for control bath:
  • TFT/LCD 8”
  • Resolution 1024 × 768 and 256 k colours
  • 2 × USB Port
• PID with over temperature alarm and PT100A probe
• LabLink software running in Windows® ambient
• Motor stirrer
• Power supply: 220 Vac 50/60 Hz
• Temperatures in °C / °F
• Cooling capacity: from ambient temperature up to -75 °C
