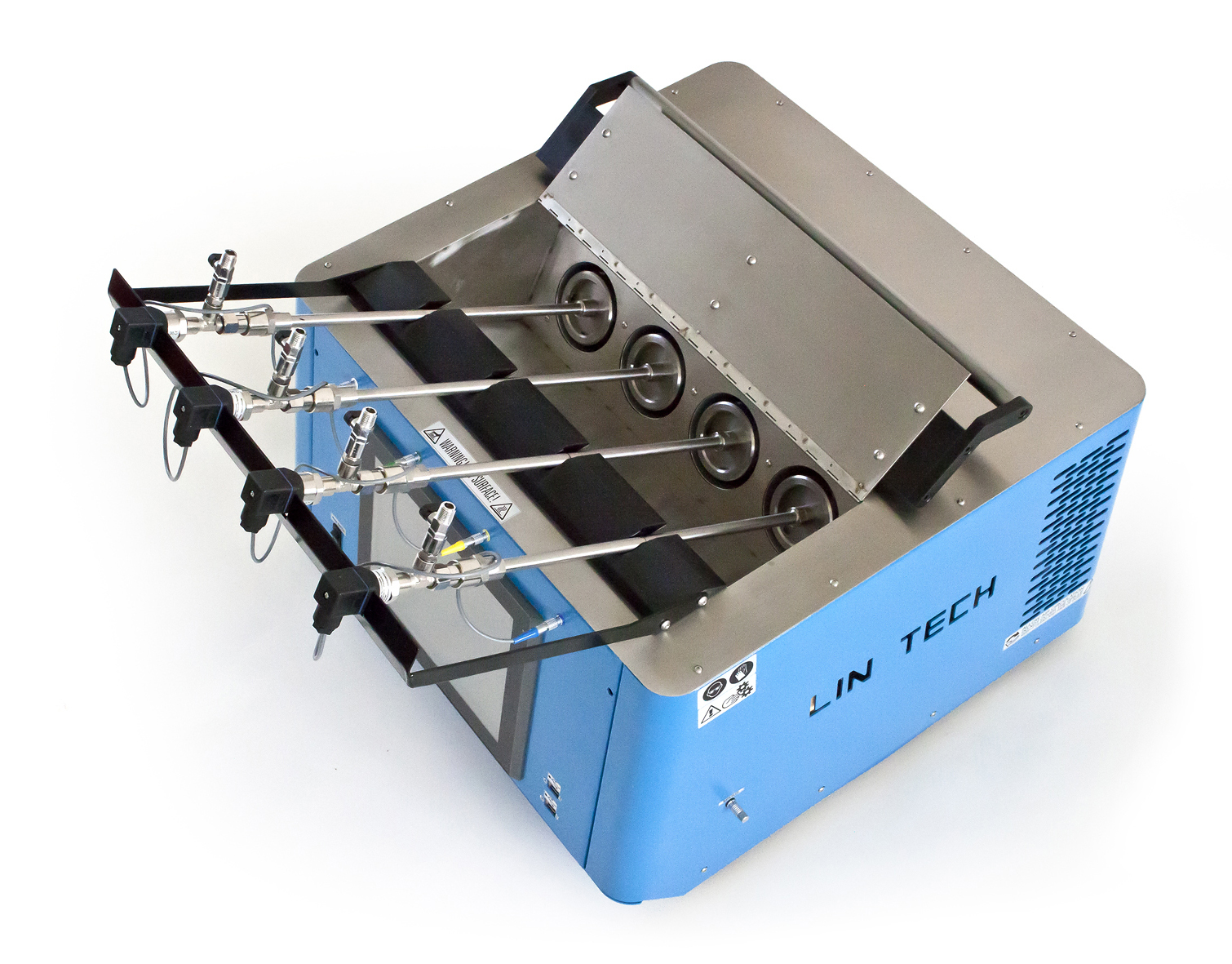

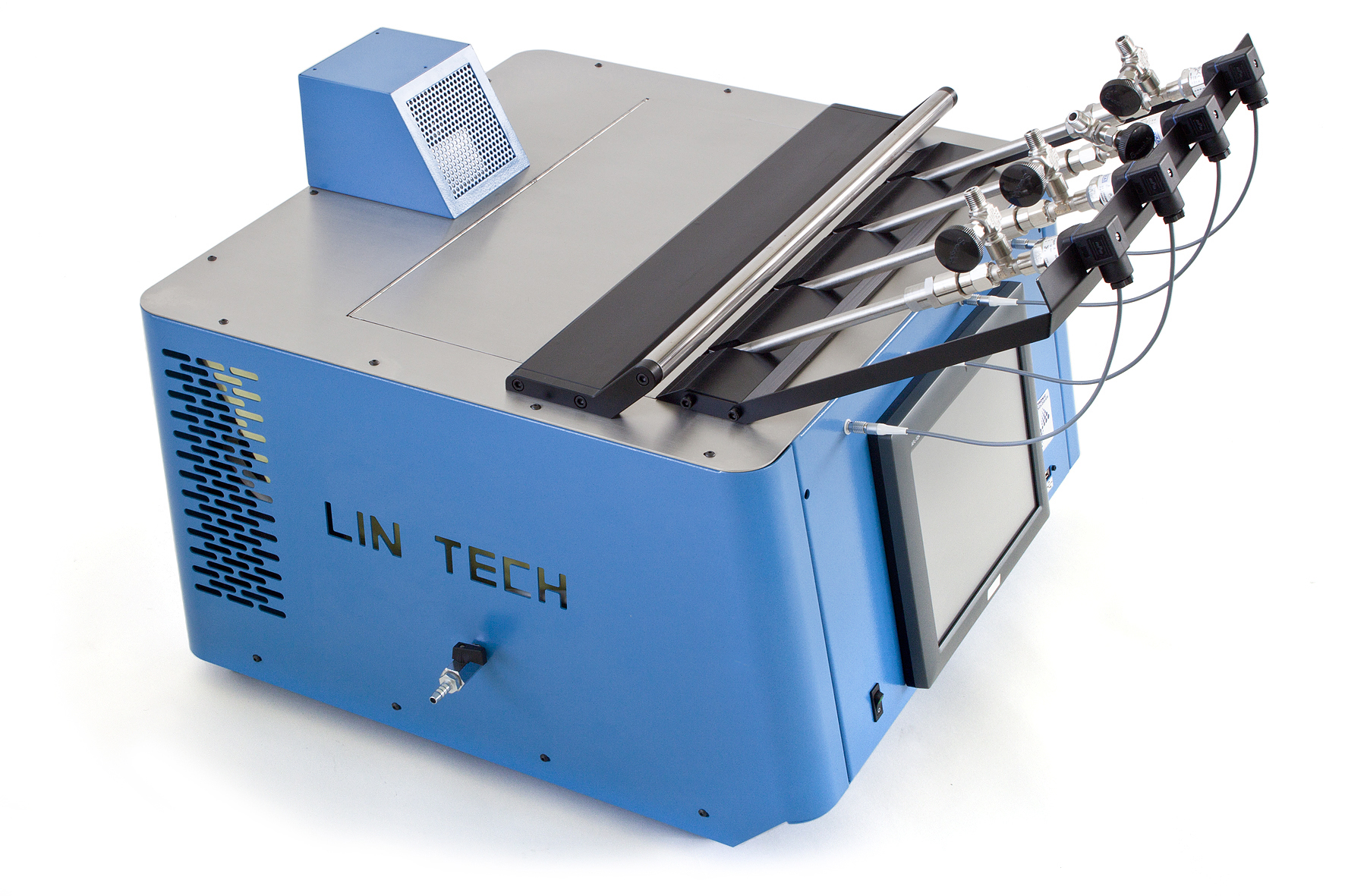

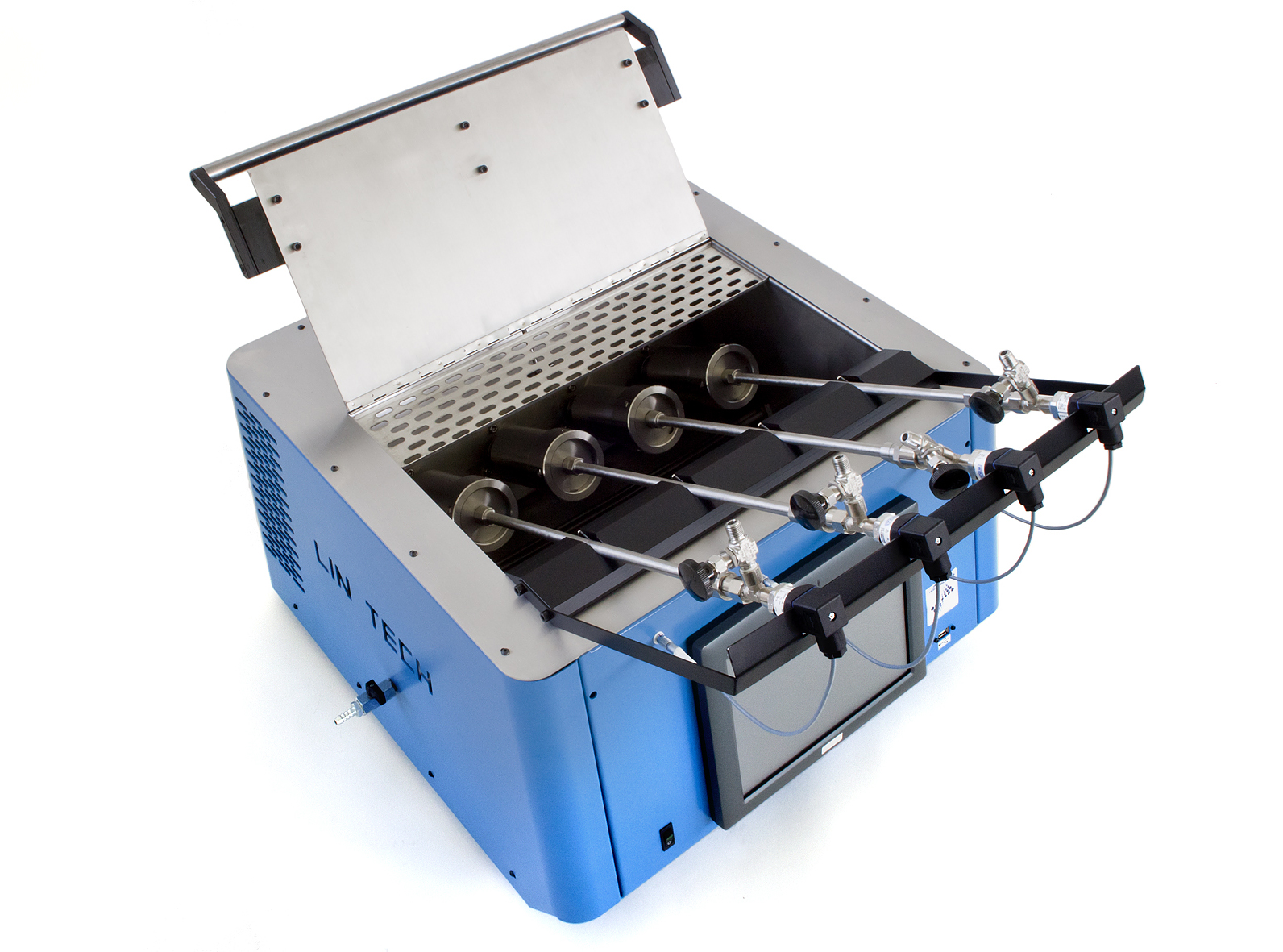

4 places RBOT & TFOUT liquid bath

• His compact dimensions 70 × 85 × 60 cm and relative light weight only 60 Kg (without oil) can assure an easy handling and find space above each table.

Automatic Monitoring system

• Automatic Monitoring system included TFT 12” panel pc and 4 pressure sensor with elevate precision combined with an electronic board dedicated for reach the incredible performance that this instrument can perform.
• With a resolution of 1024 × 768 and 16M colours for granting the maximum visibility of all parameters, equipped with 2 USB port.
• New generation end-user friendly software developed by our software technical engineers with a step-by-step procedure for perform analysis.
• Internal database can be contain over than 60’000 analysis that can be printed out or exported with an Usb key that accompanied the main instrument.
• Able to manage independently the 4 test cylinders, the software can be switch temperature from °C in °F, calibration of the bath up to 100 points for grant the maximum precision.

Other features

• Display pressure in bar/psi/Kpa
• Real time graph creation
• Export file in xls, jpg and pdf format



Internal tank and mechanical parts

• The mechanical parts designed and made in Switzerland assure a perfect matching, only the best raw materials are used for assure quality and durability.
• The internal tank with a capacity of approximately 40 litres of oil mixed with 2 indipendent heathing element assure a perfect stability of temperature during the analysis.
• PT100 class A probe are used for control the temperature and prevent overheating.

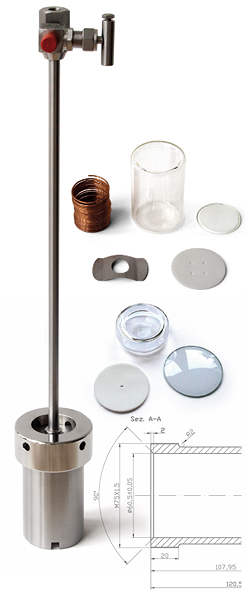

• New accessories complete this instrument like the new slide for easly accommodate the vessel into the bath and simplify the matching with the motor coupling.
• New Drip for vessel for not waste oil outside the bath.
• Bath temperature range from ambient to 199°C ±0.1°.
