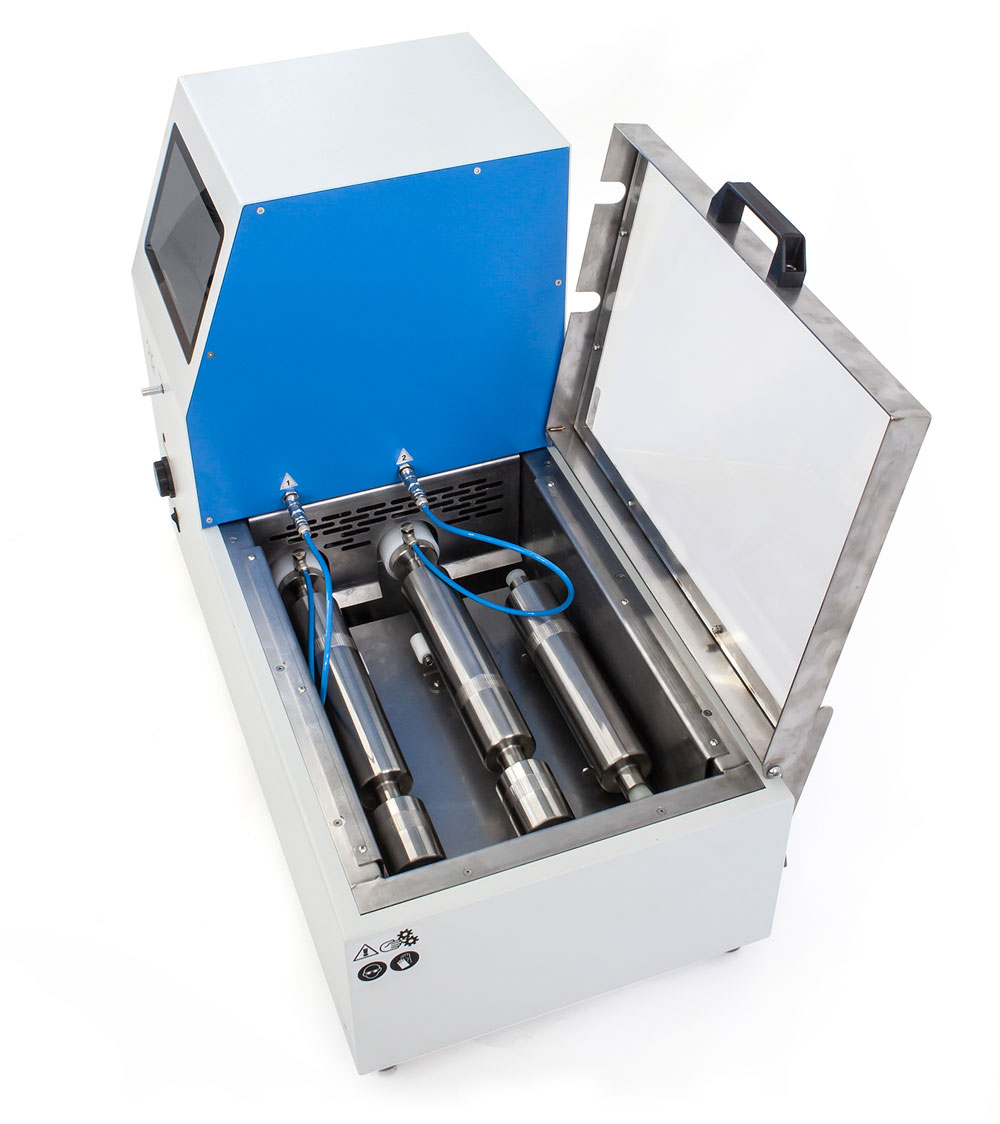

OilLab 715 Reid Vapour Pressure
OilLab 715 Reid Vapour Pressure
OilLab 715 Reid Vapour Pressure
OilLab 715 Reid Vapour Pressure
OilLab 715 Reid Vapour Pressure
Category: Fuels and Oil Analysis
Sub Category: Viscosity/Distillation/Flash Point
Share
Add To Cart

ASTM D323 - IP 69 - ISO 3007
Vapour Pressure of Petroleum Products (Reid Method)
The test method covers the determination of vapour pressure of gasoline, volatile crude oil, by means of three procedures: A, B and C.
The OilLab 715 grant the determination in conformity with the procedure B (horizontal bath) on petroleum products having Reid Vapour Pressures below 180 kPa (26 psi).

ASTM D4953
Standard Test Method for Vapor Pressure of Gasoline and Gasoline-Oxygenate Blends
This test method covers and is applicable to gasolines and gasoline-oxygenate blends with a vapor pressure range from 35 kPa to 100 kPa (5 psi to 15 psi). This test method, a modification of Test Method D323 (Reid Method), provides two procedures to determine the vapor pressure of gasoline and gasoline-oxygenate blends.

ASTM D323
ASTM D4953
IP 69
ISO 3007

  • Bath made in stainless steel suitable for the accommodation of up to two (2) vapour pressure cylinders according to ASTM specifications
  • Bath temperature range from ambient to +80°C ±0.1°, filling level 20 litres
  • Analysis range from 0 up to 250 kPa
  • Motorized stirrer with shaft , drain tap
  • Electric immersion heater controlled by PID system
  • Drive system for swing gently the vessel in horizontal position
  • Secure handle cover for open bath
  • Bath equipped with a Touch screen panel PC
    • TFT/LCD 8”
    • 40 Gb HD
    • Resolution 1024 × 768 and 16M colours
    • 2 × USB Ports for connecting pen drive and printer
  • The dedicated software manages:
    • The bath temperatures by means of a PT100 sensor class A that can be displayed in °C / °F, including the over temperature safety alarm
    • 2 (two) electronic sensors, pressure transducers / electronic pressure gauges supplied for the coupling to the test vessels
  • Cables and connectors
  • Dedicated software for real time monitoring and recording that includes:
    • Display of the pressure in bar / psi / Kpa
    • Graph creation in real time during the test
    • Invalid test indication
    • Export of files in xls / pdf / jpg format
    • Calibration up to 100 points
  • Power supply: 220Vac 50/60Hz
