Salt In Crude Analyzer
Category: Fuels and Oil Analysis
Sub Category: Others
Share
Add To Cart

The Seta Salt-in-Crude Analyzer is a robust and portable instrument for determining the chloride (salt) content of crude oils in full conformity to ASTM D3230, IP 265 and equivalent test methods.

The Analyzer is pre-calibrated and automatically displays salt concentration measurements in g/m3 or lbs/1000bbl (pounds per thousand barrels), this avoids the need to mix salt calibration standards and makes testing a simple and fast procedure.

3 test modes:

ASTM/PRECAL - pre-calibrated for use in conformity to ASTM D3230

ASTM USER- allows user calibration of ASTM values (ie: display values can be verified and/or recalibrated by the user against salt solutions of known conductivity)

IP USER - allows user calibration according to IP 265 values Measurements can be displayed or exported to a PC or to LIMS network. The instrument is suitable for bench top or hand-held operation and operates from battery or mains voltage

Key advantages

  • Salt concentration values displayed automatically
  • No need for mixing of salt standards
  • Pre-calibrated for immediate use as per ASTM D3230
  • User calibration modes allow verification against user standards
  • Typical test time of less than 30 seconds
  • Moisture proof membrane touch panel with large keys

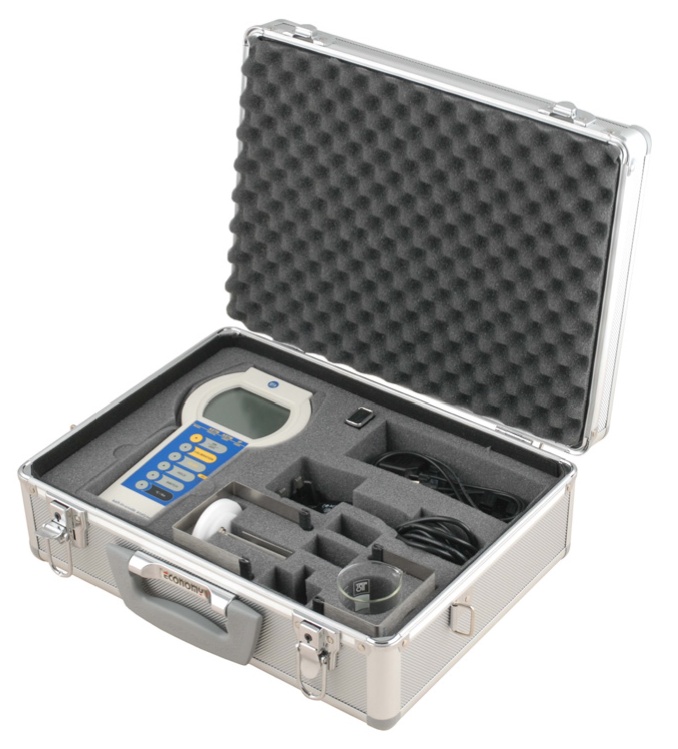

  • Fully portable, all items contained in aluminum carry case

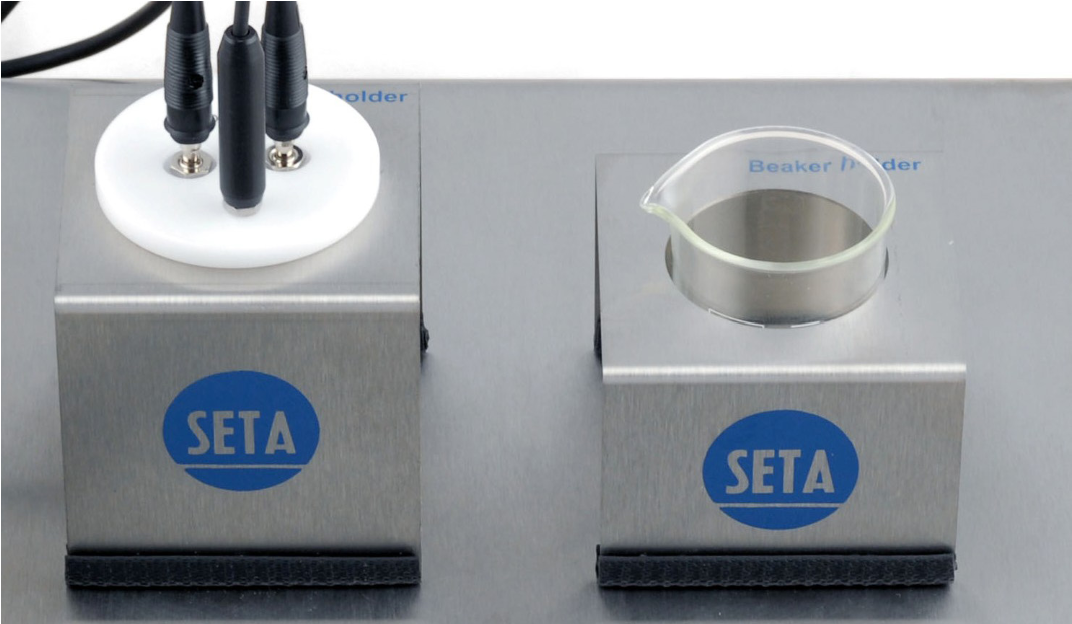

  • Supplied with beaker and sensor support stands
  • Interchangeable plug-in sensor
  • Battery or mains power supply

Application:

The presence of salts (chlorides) in crude oil provides a serious problem to drilling, pumping and refining processes, it is also of concern during transport. Excessive salt levels may cause corrosion problems and clogging of pipelines, refining and catalytic processes.

• Refineries

• Pipelines

• Terminals

• Laboratories

• Inspection Companies

• Oil platforms

SaltCheck Verification Kit:

The kit is designed to quickly verify the results displayed on the Analyser. It contains a set of 3 ‘SaltCheck’ verification modules supplied in a convenient storage case. The modules are calibrated to show equivalent salt values of:

• 0 g/m3

 • 30 g/m3

• 190 g/m3

Instrument verification is easy - simply plug the sensor assembly into each module to verify display readings.

Saltcheck is supplied with a certificate of verification.

99700-6:

Salt in Crude Analyser

99703-0:

SaltCheck’ verification tool

99700-403:

Power supply

99700-404:

Stands (pair for beaker and sensor assembly)

99700-602:

Beaker (pack 10)

99700-603:

Temperature probe and cable

99700-604:

Replacement probe and sensor

99701-0:

Instrument bench stand
