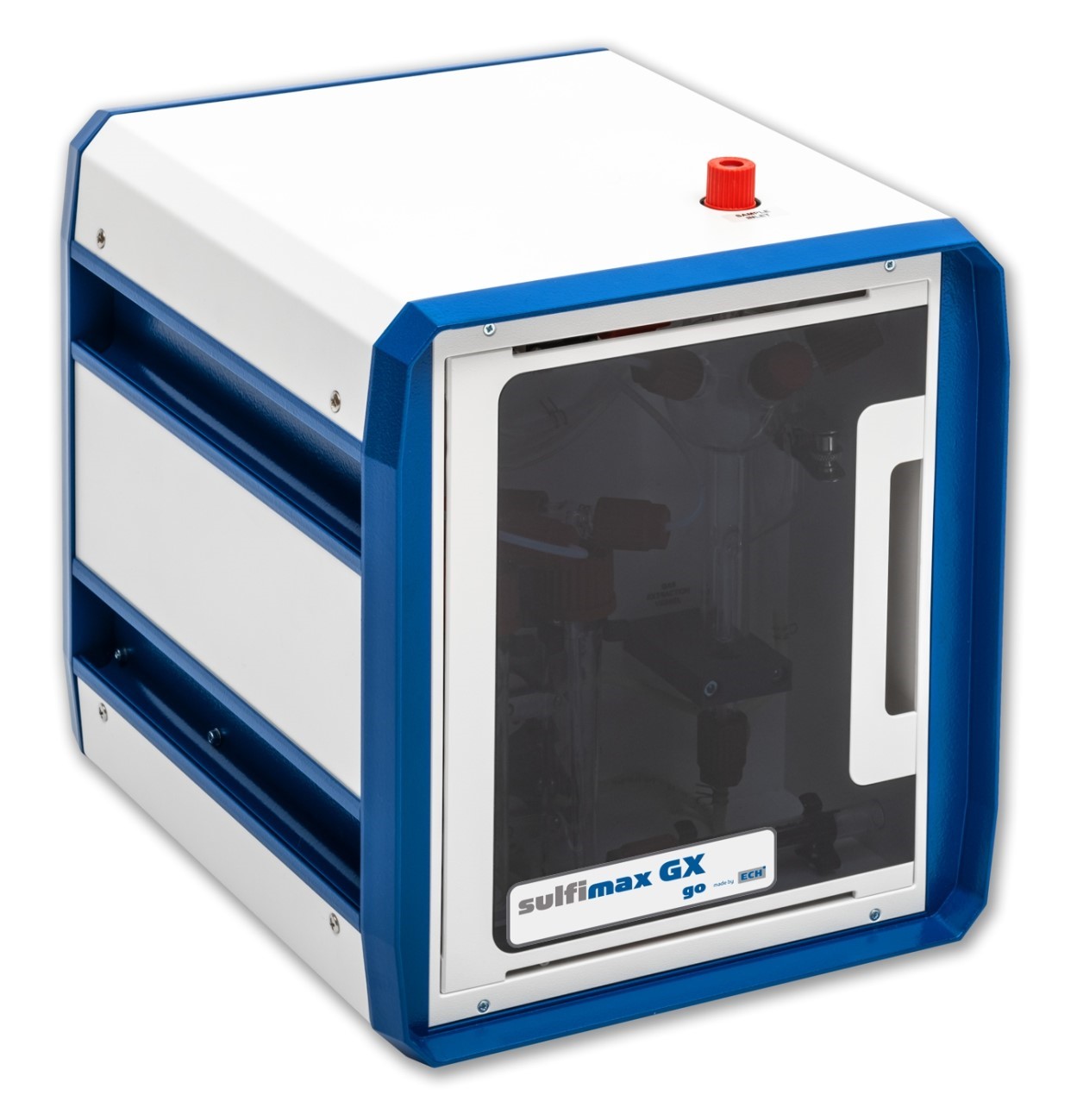

Automatic H2S analyzer the Sulfimax GX Go determines hydrogen sulfide and volatile sulfides in liquids and gases.
The sample can be dispensed directly by syringe without pretreatment.
By effective gas extraction the H S is 2 completely expelled from the sample. Interferences due to the sample matrix practically do not occur.
The released H S gas is conducted to the 2 highly sensitive sensor, which detects H S 2 in the range of 0.01 to 10,000 ppm.
A typical measurement takes 5 min, depending on the sample composition.

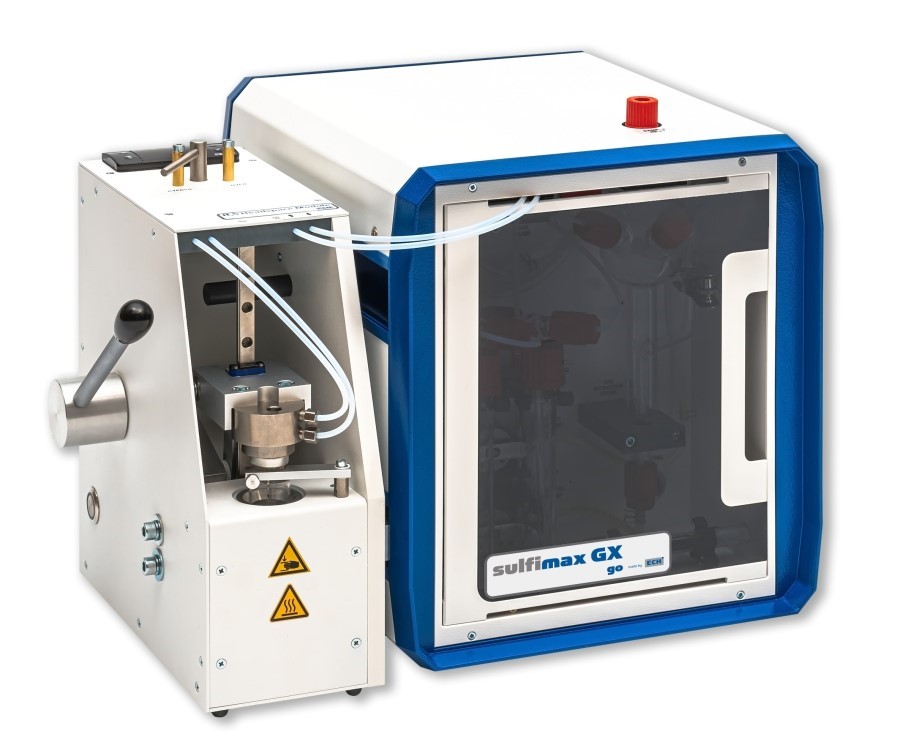

If the Sulfimax GX Go is extended with the optionally available H S Headspace 2 Module, solid and pasty samples can also be measured.
DIN 38405-27: 2017-10 Determination of sulfide by gas extraction method
ASTM D 5705 -15 Gas extraction of Hydrogen Sulfide in the Vapor Phase Above Residual Fuel Oils
ASTM D 7621-16 (IP570) Determination of Hydrogen Sulfide in Fuel Oils by Rapid Liquid Phase Extraction (Procedure B)
ASTM D 6021-17 Extraction of Total Hydrogen Sulfide in Residual Fuels by Multiple
Measuring range | 0.01 ... 10,000 ppm (dependent on sample volume) |
Resolution | 0.1 µg abs., output signal linear |
Measuring duration | 2 ... 10 min (dependent on the sample), usually 5 min |
Sample volume | 0.01 ... 20 mL |
Gas flow | Up to 50 L/h |
Power supply | 230 V/50 Hz, 115 V/60 Hz |
Power input | 150 W |
Dimensions | 260 x 310 x 300 mm (W x D x H) |
Weight | 8 kg |
Data connection | RS 232 / USB (with converter) |
Device control | PC software (PC not included in the scope of delivery) |
Instrument: 90.20.4204
