Viscosity is defined as the rate of a fluid’s internal resistance to the force that is required to flow. Intermolecular force, molecular mass and temperature of a fluid is considered as the three main factors effecting the viscosity. Fluids such as water, air, oil etc. that have directly proportional flow rate with friction resistance are called as Newtonian fluids.
Best method to measure viscosity of Newtonian fluids is by using capillary viscometers. With capillary viscometers, viscosity is determined based on the flow time of a fluid which is kept at a specific temperature inside a capillary with known diameter and length.

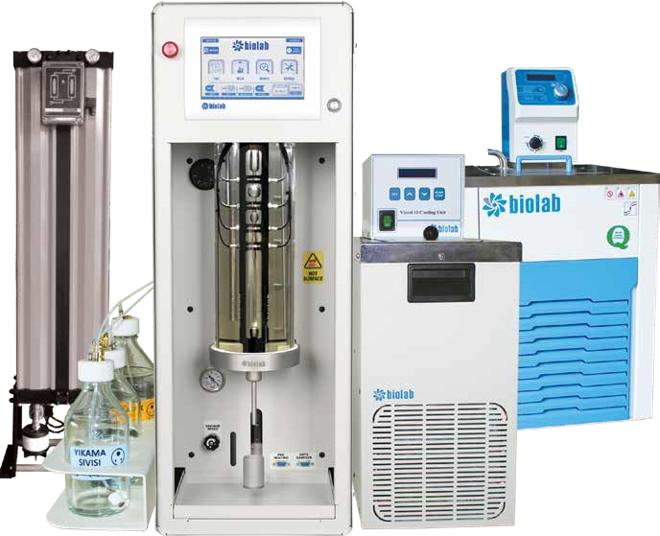

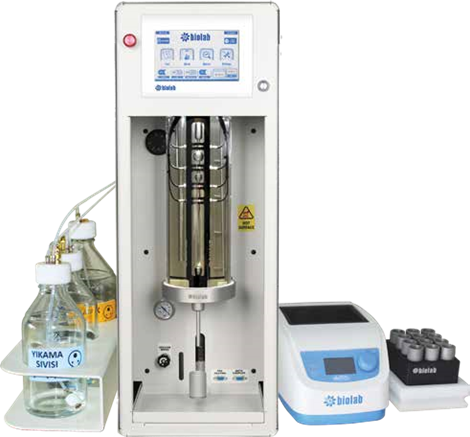

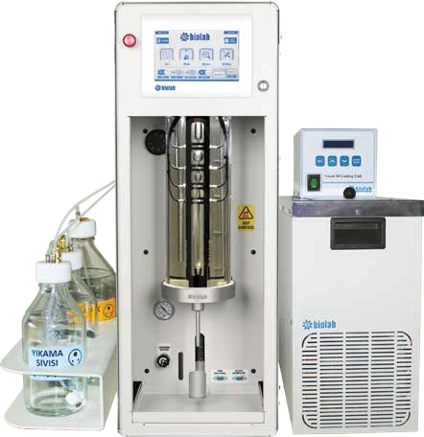

Viscol-10 Series, fully-automatic kinematic viscometers, equipped by the latest temperature control, detector, chronometer and washing specifications with different models for oil, fuel, bitumen, polymer, paper, food and similar industrial demands. Viscol-10 Series viscometers provide the most reliable results for research, development and quality control practices without any user intervention.
| Viscol 10A | Viscol 10P | Viscol 10B | Viscol 10J | |
ASTM D445 | Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity) | ✔ | ✔ | ✔ | ✔ |
ASTM D446 | Standard Specifications and Operating Instructions for Glass Capillary Kinematic Viscometers | ✔ | ✔ |
|
|
ASTM D789 | Standard Test Method for Determination of Relative Viscosity of Concentrated Polyamide (PA) Solutions |
| ✔ |
|
|
ASTM D871 | Standard Test Methods of Testing Cellulose Acetate |
| ✔ |
|
|
ASTM D1243 | Standard Test Method for Dilute Solution Viscosity of Vinyl Chloride Polymers |
| ✔ |
|
|
ASTM D1601 | Standard Test Method for Dilute Solution Viscosity of Ethylene Polymers |
| ✔ |
|
|
ASTM D1795 | Standard Test Method for Intrinsic Viscosity of Cellulose |
| ✔ |
|
|
ASTM D2170 | Standard Test Method for Kinematic Viscosity of Asphalts (Bitumen) | ✔ |
| ✔ |
|
ASTM D2857 | Standard Practice for Dilute Solution Viscosity of Polymers |
| ✔ |
|
|
ASTM D4243 | Standard Test Method for Measurement of Average Viscometrical Degree of Polymerization of New and Aged Electrical Papers and Boards |
| ✔ |
|
|
ASTM Da4603 | Standard Test Method for Determining Inherent Viscosity of Poly (Ethylene Terephthalate) (PET) by Glass Capillary Viscometer |
| ✔ |
|
|
ISO 307 | Plastics -- Polyamides -- Determination of viscosity number |
| ✔ |
|
|
ISO 1628 | Plastic -- Determination of the viscosity of polymers in dilute solution using capillary viscometers |
| ✔ |
|
|
ISO 3104 | Petroleum products -- Transparent and opaque liquids -- Determination of kinematic viscosity and calculation of dynamic viscosity | ✔ | ✔ | ✔ | ✔ |
ISO 5351 | Pulps -- Determination of limiting viscosity number in cupric-ethylenediamine (CED) solution |
| ✔ |
|
|
IP 71 | Petroleum products - Transparent and opaque liquids - Determination of kinematic viscosity and calculation of dynamic viscosity | ✔ | ✔ | ✔ |
|
TAPPI 230 | Viscosity of polp (capillary viscometer method) |
| ✔ |
|
|
IEC 60450 | Measurement of the average viscometric degree of polymerization of new and aged cellulosic electrically insulating materials |
| ✔ |
|
|
DIN 51562 | Viscometry - Measurement of kinematic viscosity by means of the Unbeholden viscometer | ✔ | ✔ | ✔ | ✔ |
Viscosity Measurement Range | 0,5 - 25.000 mm2/s (cSt) |
Flow Time Detection Sensitivity | 0,001 s |
Temperature Range | From ambient to 130°C |
Temperature Sensitivity | 0,001°C |
Sample and Solvent Amount | 12 ml sample - 10 ml solvent/test |
Dual Solvent Function | Standard |
User Interface | Touch-Screen Windows IPC |
Operating Conditions | 10°C - 35°C |
Dimensions (WxLxH) | 300x500x800mm |
Weight | 40 kg |
Power Supply | 110 - 240 VAC - 50/60 Hz |
