ASTM D445 - ASTM D446 - ASTM D2170 EN 12595 IP 71-1 - IP 71-2 - IP 319 ISO 3104 - ISO 3105
LT/VB-37000/M
Digital Viscometer Bath
Used for measuring oils viscosity by Cannon-Fenske, Ubbelohde and similar capillary
Working temperature from ambient to +70°C
Transparent tank
Cover with 5 holes 51 mm
Control box on the cover
Digital display with over temperature alarm and PT100A probe, resolution 0.1°C
Stainless steel heater and motor stirrer
Stand-by covers
Power Supply
220Vac 50/60 Hz
Dimensions
50 cm diameter × h 60 cm
Weight
kg 12
LT/VB-39000/M

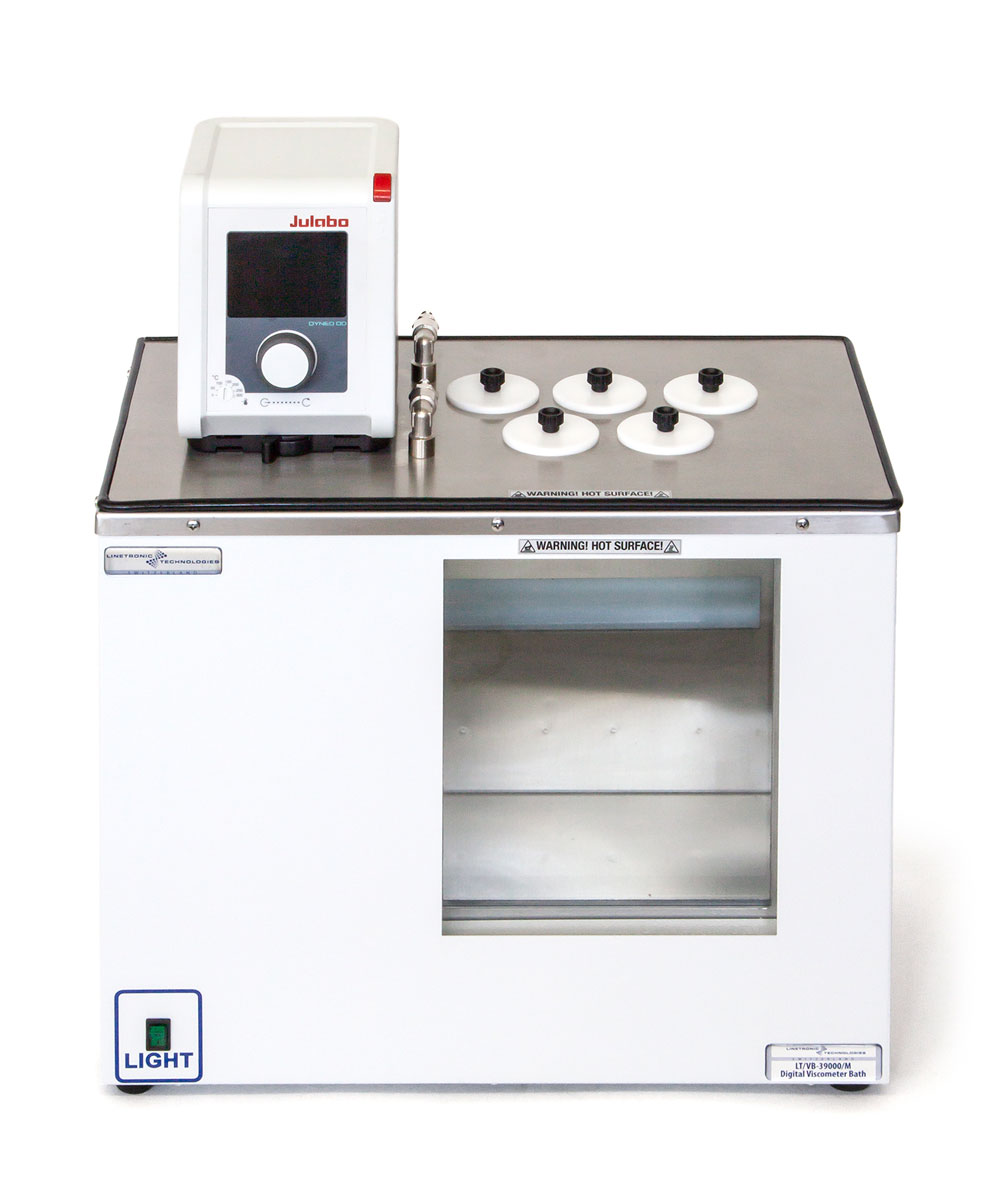

Visual + Thermostatic Bath, Max. Temperature +200°C
Bench top instrument with metallic case structure painted with anti-acid products and double chamber insulation.
Stainless steel bath 16 liters capacity with double window for internal inspection, cover made stainless steel with 5 holes 51 mm for introduction of viscosity capillaries, 1 hole for bath thermometer and cooling coil connections for external cooling source.
Temperature and stirring controlled by Julabo® heating head able to heat up to +200°C with a display resolution of 0.01°C.
Back light with main switch for easy check the capillaries.
Rear drain cock for easily drain out the bath medium.
Stand-by covers made in plastic material with small handle.
Dimensions
Length 48 cm
Width 34 cm
Height 62 cm
Weight
kg 24
Power Supply
220 Vac or 115 Vac 50/60 Hz
Max. Consumption
2000 Watt
LT/VB-39006/M
Visual + Thermostatic Bath, Max. Temperature +200°C
Bench top instrument with metallic case structure painted with anti-acid products and double chamber insulation.
Stainless steel bath 16 liters capacity with double window for internal inspection, cover made stainless steel with 6 holes 51 mm for introduction of viscosity capillaries, 1 hole for bath thermometer and cooling coil connections for external cooling source.
Temperature and stirring controlled by Julabo® heating head able to heat up to +200°C with a display resolution of 0.01°C.
