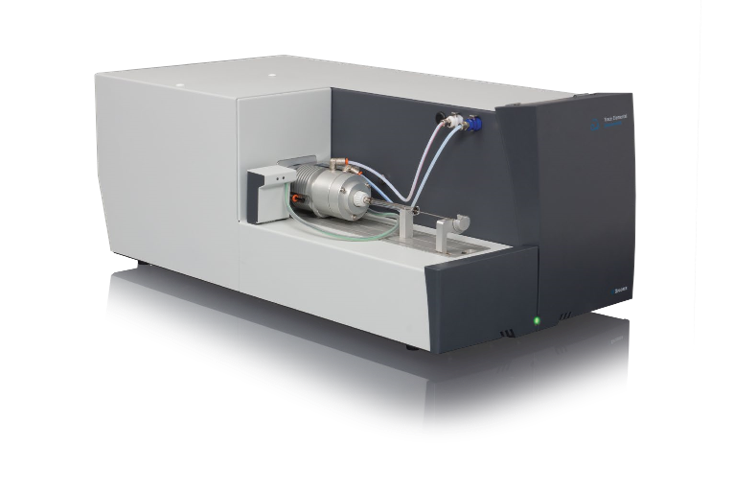

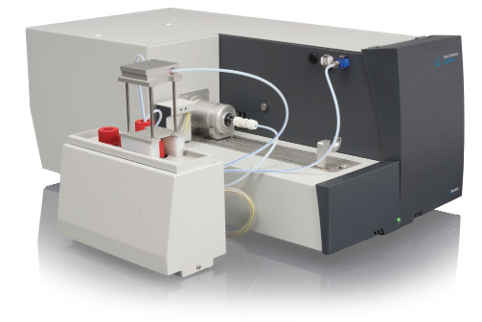

TE Instruments has developed the XPLORER, an AOX, TOX, POX and EOX analyzer offering fast, accurate and precise analysis of organic halogens.
This brand new model is designed to offer customized solutions to match both current and future analytical needs.
AOX/TOX | EOX | POX |
DIN 38409-part 14 | DIN 38409-part 8 | NEN 6401 |
DIN 38414-part 18 | NEN 5777 |
|
ISO 9562 | NEN 5735 |
|
ISO 11480 | NEN 6402 |
|
EPA 9020 | NEN 6676 |
|
EN 1485 | NEN 6401 |
|
Fast screening of organic halogens greatly relies on the analysis of AOX, TOX, POX and EOX content. TE Instruments coulometric systems are the new bench mark for many applications:
Dimensions (W x H x D) | 36 x 27.2 x 69 cm (14.2 x 10.7 x 27.2 inch) |
Weight | 29 kg (64 lbs) |
Voltage | 100-240 V, 50-60 Hz |
Power requirement (max) | 1150 W |
Gas connectors | ⅛" Swagelok |
Gases | Oxygen 99.6 % (2.6), Argon 99.998 % (4.8) |
Input gas pressure | 3-10 bar |
Internal gas pressure | 1.8 bar, adjustable |
Furnace voltage | Dual zone, low voltage |
Furnace temp. (max) | 1150 °C (2100 °F) |
Furnace cooling | Pulling Fan, auto control |
Sample introduction AOX/TOX | Solid introduction by quartz boat |
Sample introduction EOX | Direct injection by liquids module |
Sample introduction POX | Introduction by POX module |
Solids | 5-1000 mg |
Boat driver | Software controlled, adjustable |
Slider/shutter driver | Software controlled, adjustable |
Detector | SMD, Digital Coulometer |
Detector accuracy | Better than 2% CV |
Titration cell conditioning | Temperature controlled, adjustable |
Software | dot.NET-based, TEIS software |
Ambient temperature | 5-35 °C (41-95 °F) |
