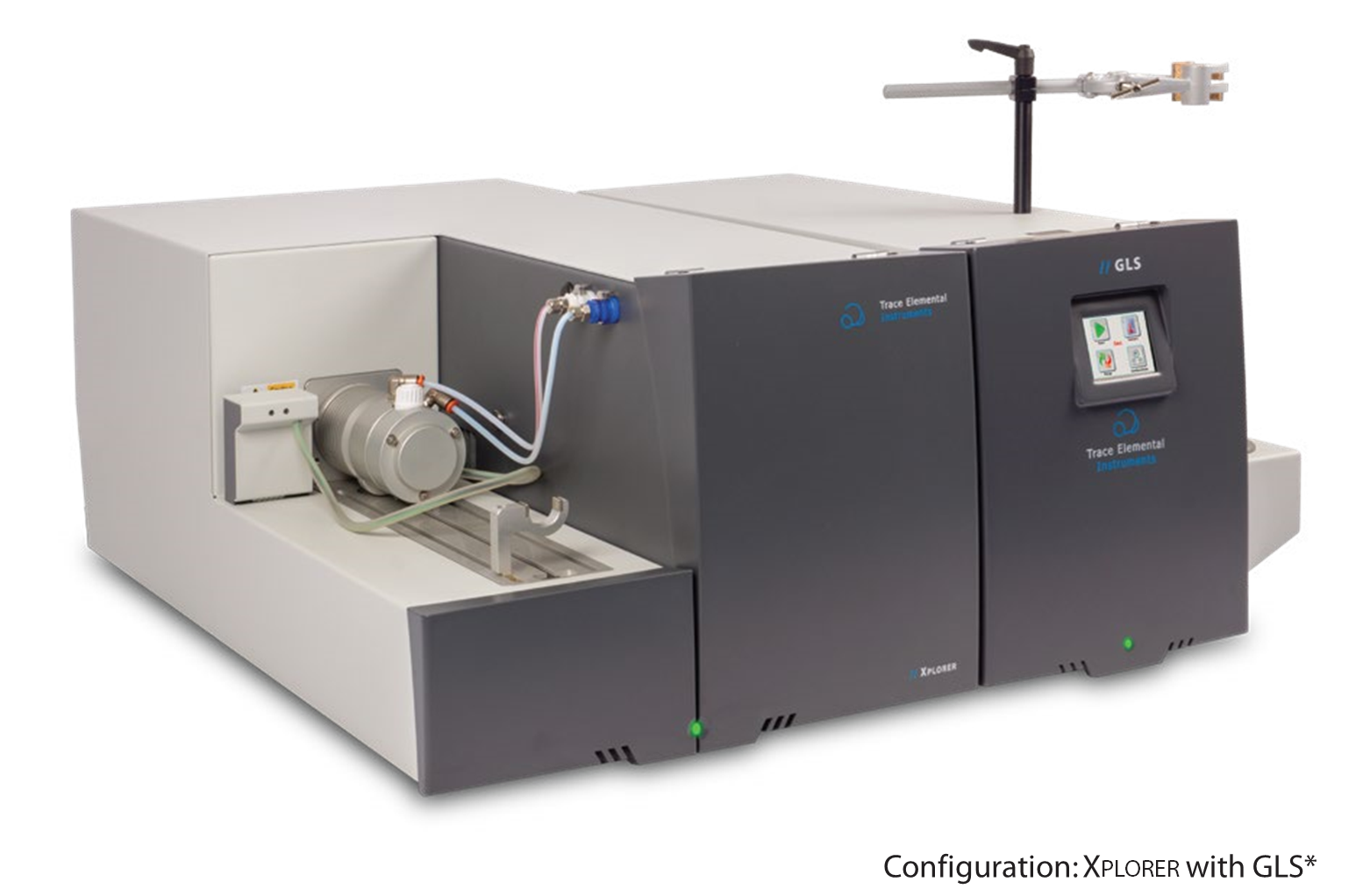

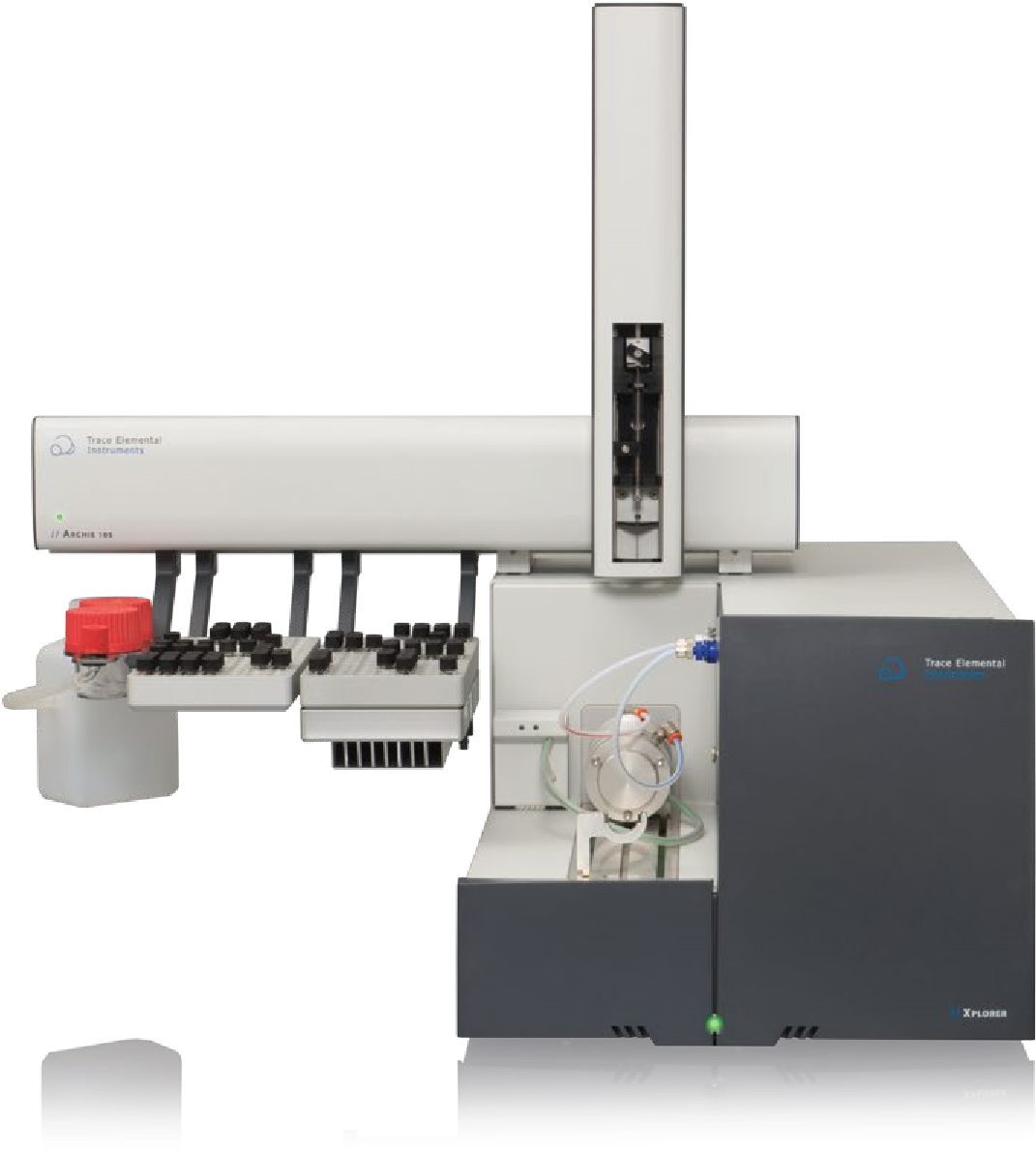

TE Instruments has developed the XPLORER-NS, a Total Nitrogen and Total Sulfur combustion analyzer, offering fast, accurate and precise analysis of solids, liquids, gases and LPG’s.
This brand new model is designed to offer standardized and customized solutions to match both current and future analytical needs, ranging from low ppb’s to high ppm’s.
Total Sulfur
ASTM D5453
ASTM D6667
ASTM D7183
EN 20846
Total Nitrogen
ASTM D4629
ASTM D5762
ASTM D6069
ASTM D7184
Chemicals:
• Acetic Acid
• Polypropylene & -ethylene
• Polycarbonate
• Aromatics
• Resins
• Olefins and parafines
Refinery products:
• Crude oil
• Kerosene
• Fuel oil
• Gasoline
• Diesel fuel
• Catalyst
• Naphta
• Lubricants
Dimensions (W x H x D) | 36 x 27.2 x 69 cm (14.2 x 10.7 x 27.2) |
Weight | 32 kg (70.5 lbs) without furnacetube and introduction |
Voltage | 100-240 V, 50-60 Hz |
Power requirement (max) | 1150 W |
Gas connectors | ⅛" Swagelok |
Gases | Oxygen 99.6 % (2.6), Argon 99.998 % (4.8) |
Input gas pressure | 3-10 bar |
Internal gas pressure | 1.8 bar, adjustable |
Furnace voltage | Dual zone, low voltage |
Furnace temp. (max) | 1150 °C (2102 °F) |
Furnace cooling | Pulling fan, auto control |

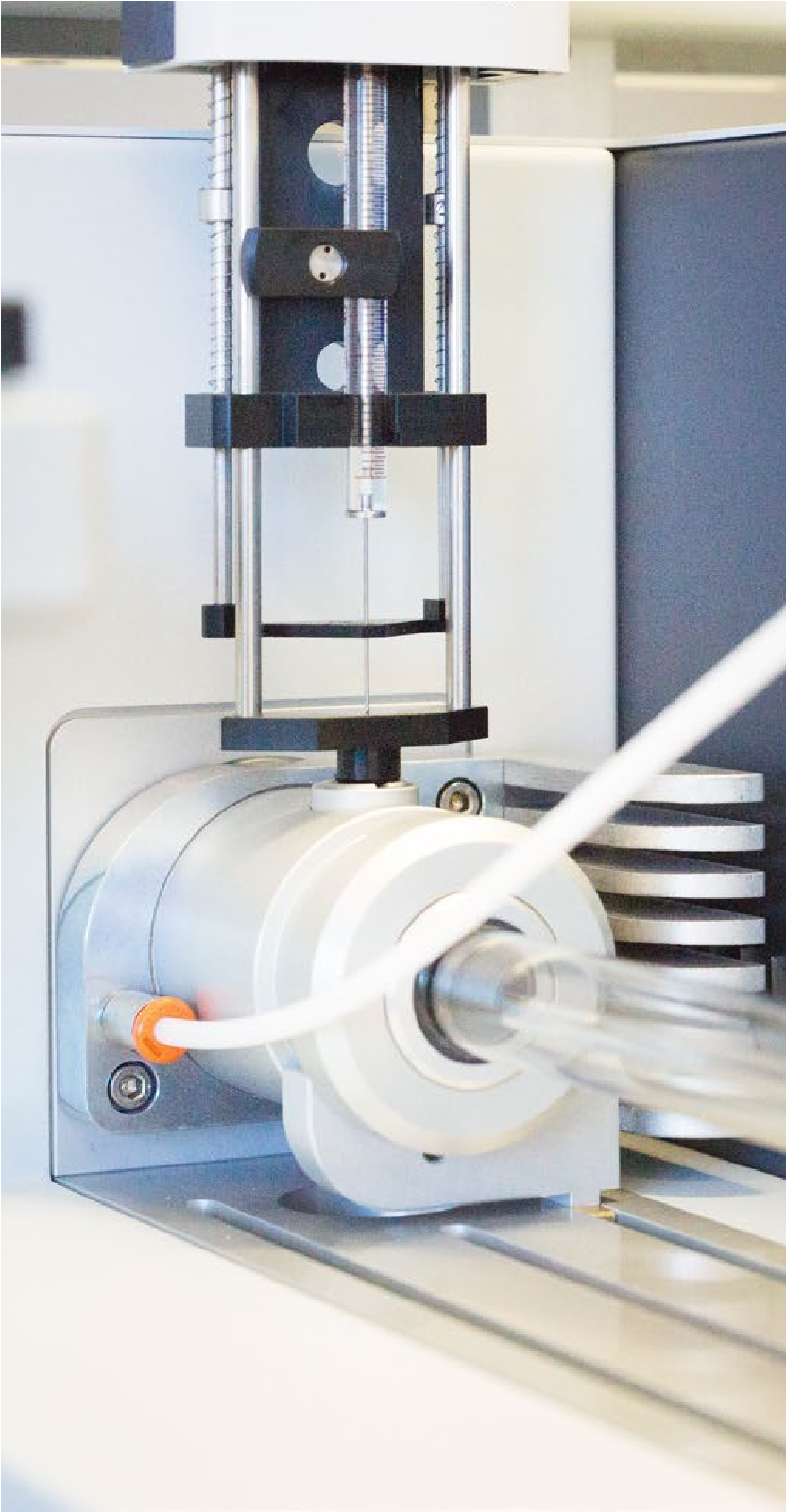

Sample introduction | Solid by boat, Liquid direct injection, Gases and LPG’s by GLS |
Sample size | Solids: 5-1000 mg; Liquids: 100 µL; Gas: 10 mL; LPG: 100 µL |
Semi-automatic boat/syringe driver | Software controlled, adjustable method file |
Slider/shutter driver | Software controlled, adjustable |
Detector Nitrogen | Chemiluminescence |
Detector Sulfur | Xenon Pulsed UV-fluorescence AFC technology |
Detector accuracy | Better than 2% CV |
Detector conditioning | Temperature controlled, adjustable |
Vacuum pump | Internal 24 Volt DC |
Software | dot.NET-based, TEIS software |
Ambient temperature | 5-35 °C (41-95 °F) non condensing |
