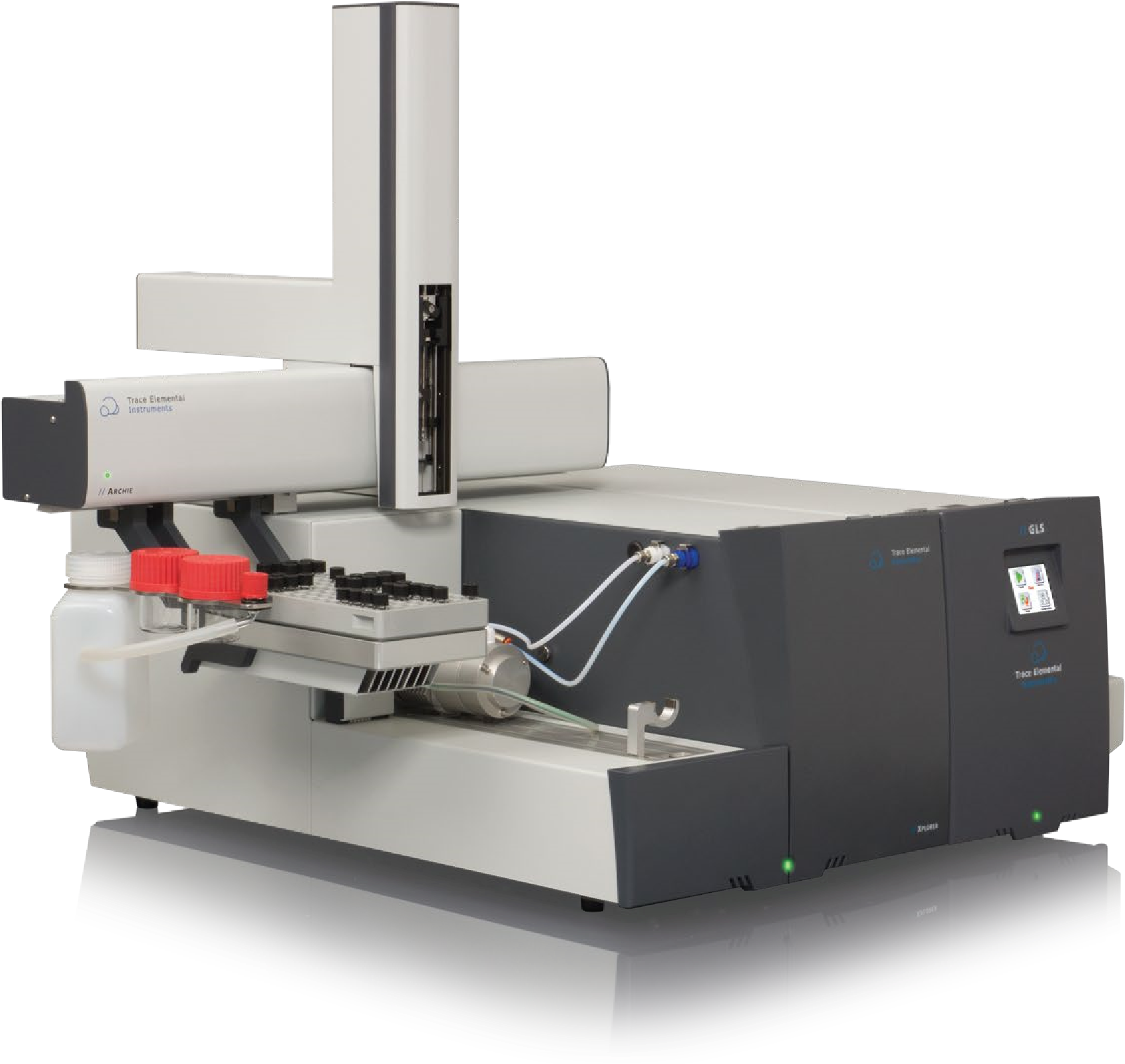

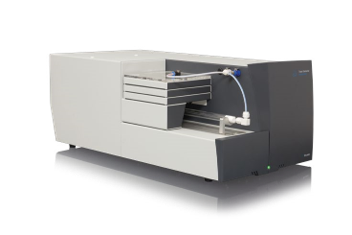

The TE Instruments XPLORER-TX/TS is a micro coulometric combustion analyzer for the analysis of Total Halogens and Total Sulfur. The XPLORER-TX/TS blends into every laboratory environment, whether it is for R&D, refinery, chemical or petrochemical applications, this elemental analyzer handles them all without any exception. Its robustness and precision are ideal for activities in, for example, refineries or surveyor testing labs.
TX | TS |
ASTM D4929 | ASTM D3120 |
ASTM D5194 | ASTM D3246 |
ASTM D5808 | ASTM D3961 |
ASTM D7457 |
|
UOP 779 |
|
Chemicals:
Refinery products:
Solution provider for the following industries:
Dimensions (W x H x D) | 36 x 27.2 x 69 cm (14.2 x 10.7 x 27.2 inch) |
Weight | 29 kg (64 lbs) |
Voltage | 100-240 V, 50-60 Hz |
Power requirement (max) | 1150 W |
Gas connectors | ⅛" Swagelok |
Gases | Oxygen 99.6 % (2.6), Argon 99.998 % (4.8) |
Input gas pressure | 3-10 bar |
Internal gas pressure | 1.8 bar, adjustable |
Furnace voltage | Dual zone, low voltage |
Furnace temp. (max) | 1150 °C (2100 °F) |
Furnace cooling | Pulling Fan, auto control |
Sample introduction AOX/TOX | Solid introduction by quartz boat |
Solids | 5-1000 mg |
Boat driver | Software controlled, adjustable |
Slider/shutter driver | Software controlled, adjustable |
Detector | SMD, Digital Coulometer |
Detector accuracy | Better than 2% CV |
Titration cell conditioning | Temperature controlled, adjustable |
Software | dot.NET-based, TEIS software |
Ambient temperature | 5-35 °C (41-95 °F) |
