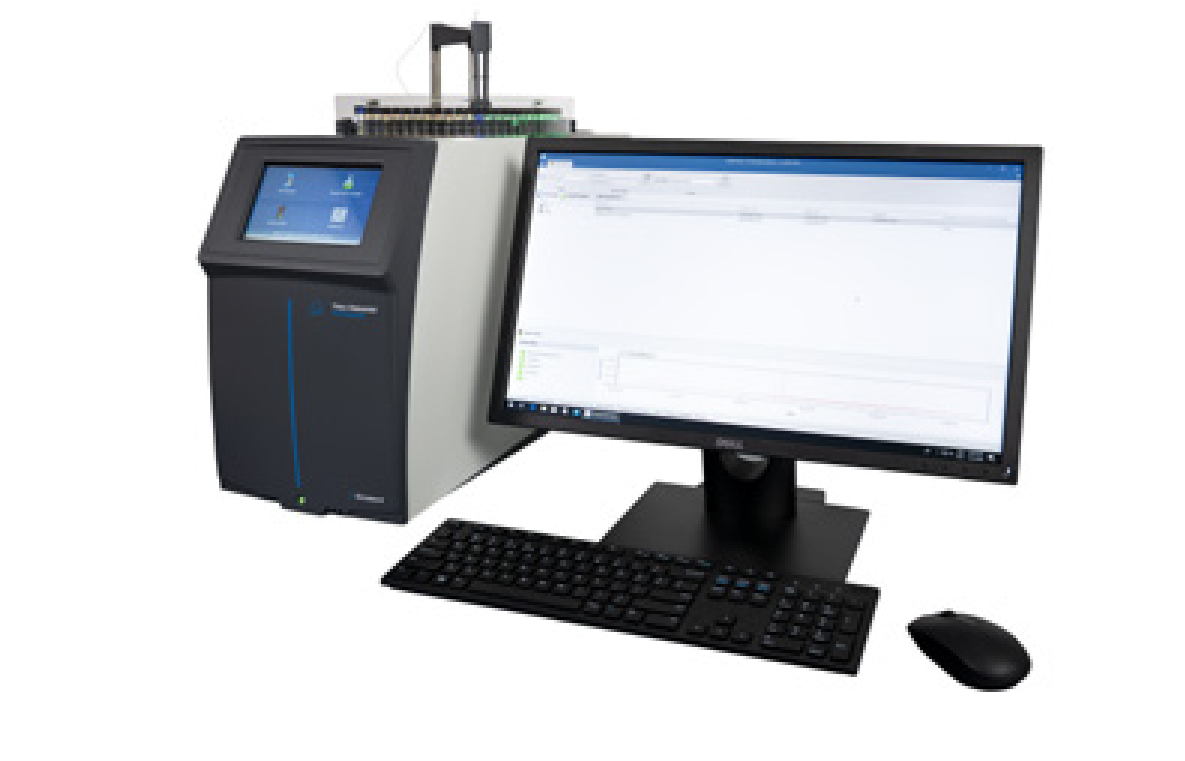

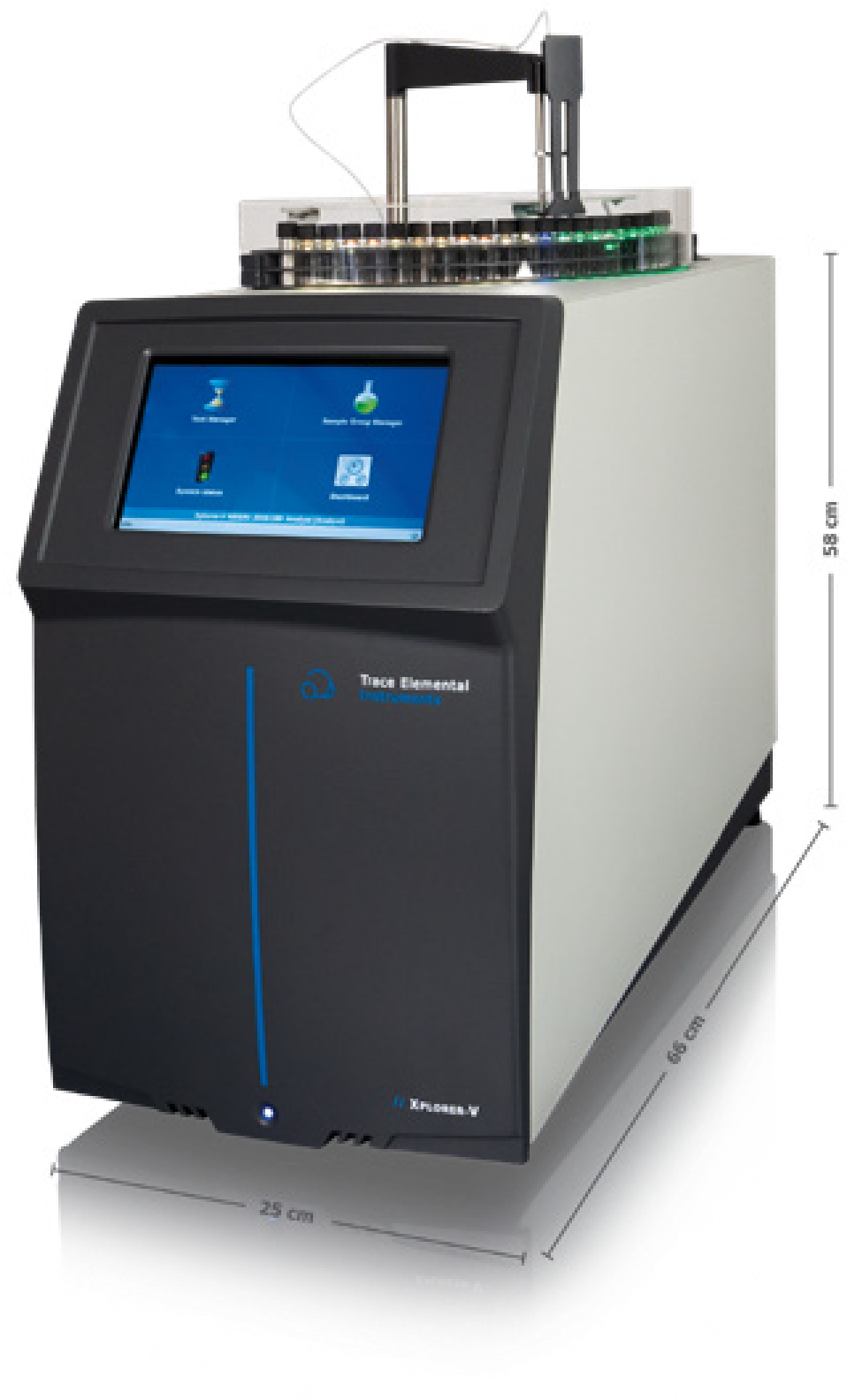

The Xplorer-V is a fully automated Nitrogen and Sulfur analyzer that offers the most features out of the smallest
footprint. Completely optimized for your (liquid) hydrocarbon sample analysis, offering fast combined TN/TS
analysis, top detection performances, smart operation features, data-driven robustness, and a fully loaded method
library. All in one single configuration.
The analyzer produces accurate results rapidly and suggests user actions based on extensive data collection.
A solution you can rely on. The Xplorer-V is designed to provide the best analytical experience when running (liquid)
hydrocarbon applications according to relevant international test methods, such as ASTM, DIN, ISO, and UOP.
The Xplorer-V utilizes a 26 position liquid autosampler, vertically oriented furnace, and best-in-class detectors to deliver spot-on liquid sample results in 2.5 to 6 minutes, depending on the application. Optionally, the analyzer can be configured with sampling systems for the automated analysis of LPG and Gaseous matrices.
The various system components are perfectly aligned, enabling accurate sample introduction, combustion, and conditioning, which create the ideal circumstances for unparalleled detection performances. This powerful configuration comes together in the smallest combined Nitrogen and Sulfur analyzer on the market.
Total Sulfur by Pulsed UV Fluorescence | Total Nitrogen by Chemiluminescence |
ASTM D5453 | ASTM D4629 |
ASTM D6667 | ASTM D5176 |
ASTM D7183 | ASTM D7184 |
ASTM D7551 | UOP 981 |
EN ISO 20846 | UOP 936 |
NEN 17178 |
|
UOP 987-A |
|
Refinery | (Petro)chemical | Biofuels |
Crude Oil | Aromatic Hydrocarbons (e.g. Ethylbenzene, Nitrobenzene, Xylene, Toluene) | Bio diesel |
Fuels (e.g. Diesel, ULSD, Gasolin, Kerosene, Jet fuel) | Organic Solvents (e.g. Hexane, Octane, Acetone, Methanol, Ethanol, Benzene, Isopropanol) | Bio ethanol |
Liquid Hydrocarbons | Mixtures | Renewables |
LPG & Gas (e.g. Butane, Propane, Methane, Natural Gas, Gaseous Hydrocarbons) | Ethylene, Propylene | UCO / UCOME |
Condensates | Polymers (e.g. PE, PP, PET) | Fatty Acids |
Distillates (Naphtha, Petroleum ether) | Additives | Palm Oil |
Lubricating Oils & Waxes |
| Waste-based Feedstocks |
Catalysts |
|
|
Configurations | • Xplorer-V TN/TS, Nitrogen and Sulfur analyzer • Xplorer-V TN, Nitrogen analyzer • Xplorer-V TS, Sulfur analyzer |
Dimensions (W x H x D) | 25 x 58 x 66 cm (9.8 x 23 x 26 inch) |
Weight | 40 kg (88 lbs.) |
Voltage | 100 - 240 VAC, 50 - 60 Hz |
Power Requirement | 750 W |
Inert Gases | O2 > 99.6 % (2.6) Argon 99.998 % (4.8) Helium 99.998 % (4.8) |
Furnace | Dual Zone, Max. 1150 ℃, 2100 ℉ |
Sample Matrices | Liquids, Gas & LPG |
Sample volume | Liquids 5 - 250 µL, Gas 10 mL sample loop, LPG 50 or 100 µL sample loop |
Detector Nitrogen | Chemiluminescence |
